3MA Restoration
« on: August 17, 2016, 09:05:52 AM »
Here we go..

It's a 1990 'G' reg 3MA1.

Bought an Ebay special very late last year, held together with nails (more on this later). The bike was running when I got her, I ran it for about 2mins after I took delivery and then started to strip. As you will see from the photos it was in a sorry state and required a lot of work to bring it back to it's former glory! Some shots below the day I got her with some of the body panels removed













Cracking on with stripping.





« Last Edit: August 16, 2017, 10:14:05 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #1 on: August 17, 2016, 09:55:06 AM »
I bought the bike almost 1 year ago and due to work travel, general life progress is slower than I expected..

Anyways, more on the bike.. After stripping it was evident some substantial frame work was required. It was missing the lower location hole for the sidestand.



First job was to have a piece welded in place and trimmed to suit.





Thanks to a fellow member on here I was able to take a few measurements from his frame and get mine to a similar condition.



And the final version of my own..

« Last Edit: August 16, 2017, 10:15:13 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #2 on: August 17, 2016, 10:06:34 AM »
Some more progress

The tabs on the frame have been at some stage removed and rotated 180 degrees, the previous owner claimed the bike was used in some sort of super single series..

Anyhow, tabs removed and rotated back 180 degrees back to standard.

Incorrect rotation;


Correct rotation;






Test fit;


Cylinder head;


New cylinder head sourced from a member on here;
« Last Edit: August 16, 2017, 10:15:50 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #3 on: August 17, 2016, 10:12:47 AM »
Time for powder coating..

All this lot apart form the exhausts went for powdering;



Started to strip the suspension/engine;







Front shocks/headstock;




Rear:





« Last Edit: August 16, 2017, 10:16:30 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #4 on: August 17, 2016, 10:16:26 AM »
Engine stripping, removal of all seals & bearings;














Went to my local bearing supplier and stocked up..


« Last Edit: August 16, 2017, 10:17:06 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #5 on: August 17, 2016, 10:19:09 AM »
Then a few days passed, collected my items from the powder coating place, dropped off a lot of alloy components to F&J Aqua Blasting for cleaning..

A nice before shot of the crankcase/heads..


And some after shots.












« Last Edit: August 16, 2017, 10:17:48 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
Re: 3MA Restoration
« Reply #6 on: August 17, 2016, 10:20:24 AM »
Some more images;















And the reassembly begins...

« Last Edit: August 16, 2017, 10:18:21 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #7 on: August 17, 2016, 10:25:28 AM »


The GN in the backgraound is the GFs..



















And the 4XV in the background is my other motor.. Sorting an oil leak on it..

« Last Edit: August 16, 2017, 10:19:03 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #8 on: August 17, 2016, 10:29:33 AM »






« Last Edit: August 16, 2017, 10:19:32 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #9 on: August 17, 2016, 10:33:19 AM »
And the fun continues...





























« Last Edit: August 16, 2017, 10:20:22 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
3MA Restoration
« Reply #10 on: August 17, 2016, 10:41:53 AM »

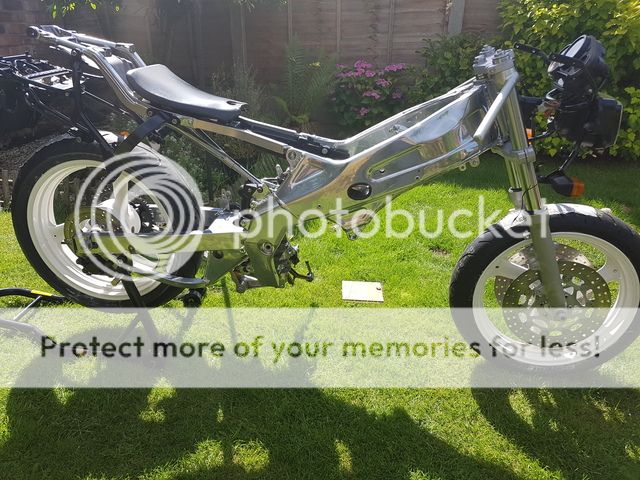

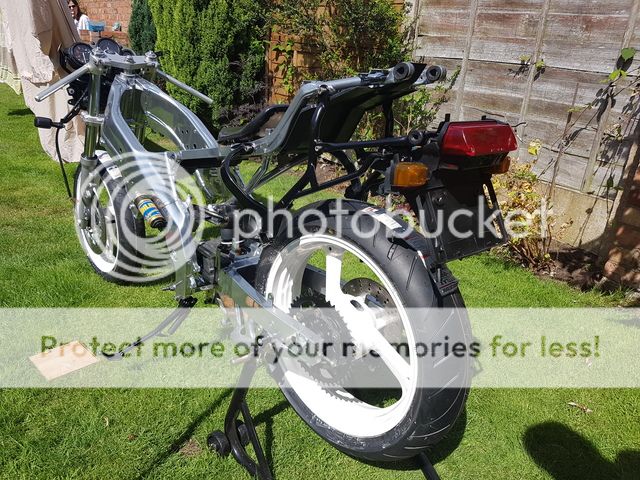

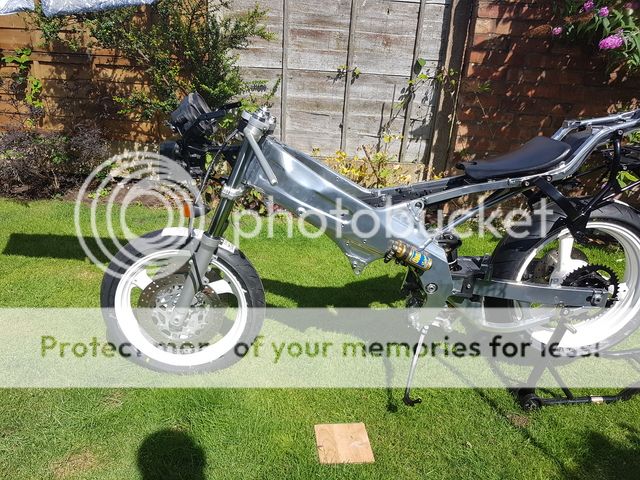

After a few months she rolls out of the garage :)







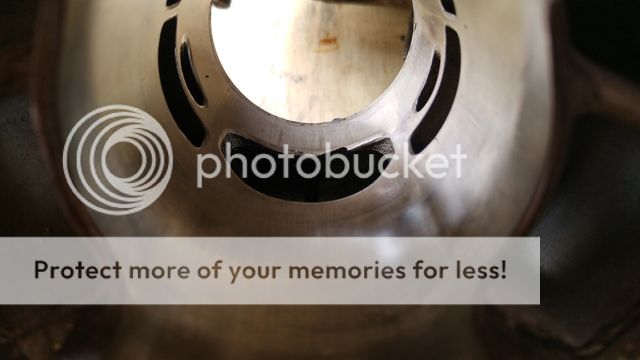

In a nutshell where I'm up to at the moment, Bottom end is complete, I have a nick is one of the barrels which will require sorting - see below;



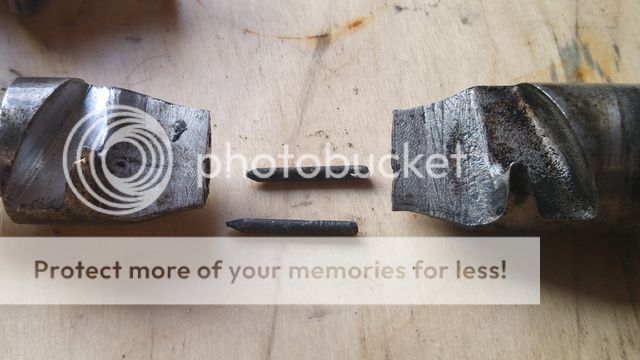

One of my power valves are gooses and was held together with nails, seriously some people need a good kicking...



I've changed almost every bearing and oil/water seal, had all parts either sand blasted/Aqua blasted or painted to bring is back to a decent standard. Since I was a kid I've always wanted a 3MA and finally came across one on Fleabay requiring a rebuilt.  I'm in the process of buying a house at the moment so I'm sure progress will slow again..

Anyways, I want to say thanks to a certain few forum members on here whoi have helped me with parts I required and answering some questions..

Hopefully have another update soon!

« Last Edit: August 16, 2017, 10:20:56 PM by TZR2503MA »
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

Paul

  • Hero Member
  • *****
  • Posts: 4768
  • Mid Wales, UK
Re: 3MA Restoration
« Reply #11 on: August 17, 2016, 11:28:09 AM »
Looking very good. Motor is superb.
the twins:-
TZR250 3xv
TZ250 4DP2

ybk

  • Hero Member
  • *****
  • Location: NZ
  • Posts: 1522
Re: 3MA Restoration
« Reply #12 on: August 17, 2016, 11:49:31 AM »
Thats quite an impressive job you're doing there! Aqua blasting sure makes an engine look nice ^-^

Whats the bodywork situation like?

TZR2503MA

  • Full Member
  • ***
  • Location: Merseyside
  • Posts: 186
  • Merseyside
Re: 3MA Restoration
« Reply #13 on: August 17, 2016, 12:08:03 PM »
Thats quite an impressive job you're doing there! Aqua blasting sure makes an engine look nice ^-^

Whats the bodywork situation like?

Hi,

thanks for the reply..

I have all the bodywork apart from the 'V' piece in front of the airbox. I believe it's all genuine Yam bits. They are in storage in the attic due to space limitation in the attic and I didn't want to risk damaging them.

When I get the engine mounted, carbs cleaned and mounted, electrics sorted and the bike running, then I'll crack on with the fairings.
RG80, RXS100, DT125, TZR125R 4DL, CBR250RR MC22 X 3!, TS100, CBR600Fx, YFZ100R, FJR1300R, KLE500 B1P, YZR-R1 4XV, TZR250R, DRZ400SM.

stevewr250

  • Hero Member
  • *****
  • Location: North Wales UK
  • Posts: 792
  • North Wales UK
Re: 3MA Restoration
« Reply #14 on: August 17, 2016, 04:51:24 PM »
What a pleasure looking at your project thanks 8)
Looks fantastic so well done you.
Keep it up.
