3XV-50

Started by Neal, October 30, 2012, 09:39:42 PM

Previous topic - Next topic

0 Members and 1 Guest are viewing this topic.

Print
Go Down Pages 1 2 3
User actions

Neal

#30
January 24, 2013, 07:05:43 PM
To me they look slightly touched on the inlet of the transfers - i will show you . The ones on the bike look untouched to me .

James' bike has TZ barrels on it .
unofficial lap record holder --- to be corrected one day !

Paul

#31
January 24, 2013, 08:03:32 PM
Quote from: Neal on January 24, 2013, 07:05:43 PM
James' bike has TZ barrels on it .

ahhhh
the twins:-
TZR250 3xv
TZ250 4DP2

Crank

#32
January 29, 2013, 03:03:37 PM
So.....anybody with an SP port map to share??

Martin77

#33
January 29, 2013, 07:50:49 PM

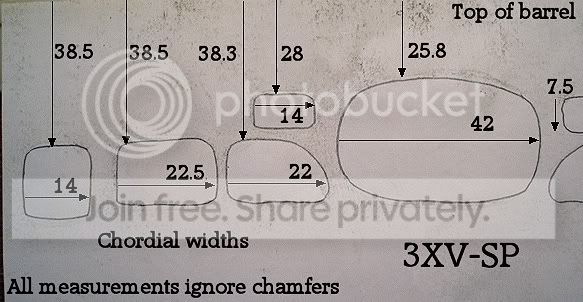

This one has been around for ages, taken from a 91 SP I think.. don't worry too much about the outline of the ports, they had large chamfers which affects the shape on the paper, but the measurements are accurate. Generally the transfers are more than 38.5mm from the cylinder top, but these were a little higher, also the exhaust port is normally only 41mm wide.

zoomzoom

#34
January 29, 2013, 07:59:53 PM
This one is also fairly common..91 3XVR-SP

maccas

#35
January 29, 2013, 08:40:34 PM
Yeah that last one is not accurate sadly. It looks like the vertical distances have been measured off the port rubbing rather than off the cylinder. So the chamfers have been included.

Dan
